TCP / IP Flap Turnstile Gate Security Access Control Wheelchair Lanes For Subway Doors

Flap Barrier Gate TCP / IP Flap Turnstile Security Gate Access Control Wheelchair Lanes For Subway Doors

 Product introduction

Flap barrier turnstiles are electronic optical turnstiles with glass panels (or flaps). These glass panels extend from a pair of optical turnstile cabinets. The panels meet in the middle of the two cabinets to form a pedestrian barrier. A flap barrier turnstile is an aesthetically pleasing security and access control solution.

The whole machine adopts SUS 304 stainless steel design, it is subtly integrated with machine, electronics, micro-processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint.

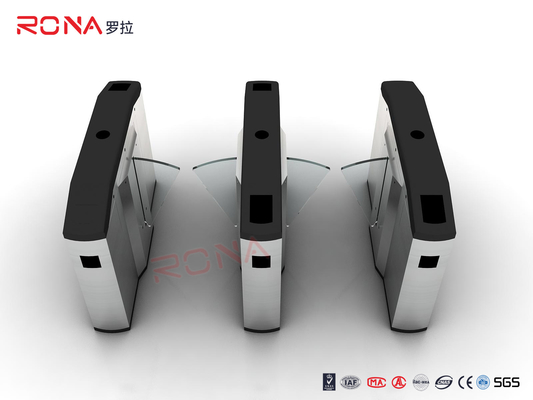

 Appearance introduction

Functions & Feature:

 1,Motor:

        Self-developed planetary gear reducer structure, driven by DC24 servo motor, compact structure, large torque, low noise

        and wear resistance.

 2,Control System:

       The self-developed servo control system, precise control, more flexible running, less mechanical impact, and longer service life.

 3,Technology:

       Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access  requirements and

       have a better experience.

 4,Mechanical Transmission Parts:

       Precisely made of high-strength plastic, pure mode design, improving the accuracy of spare parts and  assembly, more compact operation,           smaller operation gap, and longer service life.

 5,Arm:

       Acrylic arm, standardization, and refinement, surface treatment technique, the best visual effect of lighting.

Standard Technical parameters

Production side: L1400*W300*H100MM

Retractable arm length: 250 mm

Max Passage width: 550 mm

Material: SUS 304 stainless steel

Working voltage: AC220±10%V , 50HZ

Drive motor:DC24 servo motor

Input interface: Dry contact signal & 12V level signal, drive current>10mA

Normal running life: more than 3 million

Communication interface: standard RS485 interface

Sensor pairs : 6 pairs

Service port : window

Pass speed: 30~40 persons/min

Turnstile open / closed time: 1 second

Working environment: indoor/outdoor (with a tent over) -10℃～70℃

Relative humidity: ≤90% coagulation free

Application

• Government
• Office building
• Factory
• Kindergarten,University library,College dormitory
• Natatorium; Exhibition center
• Transportation and rail industry

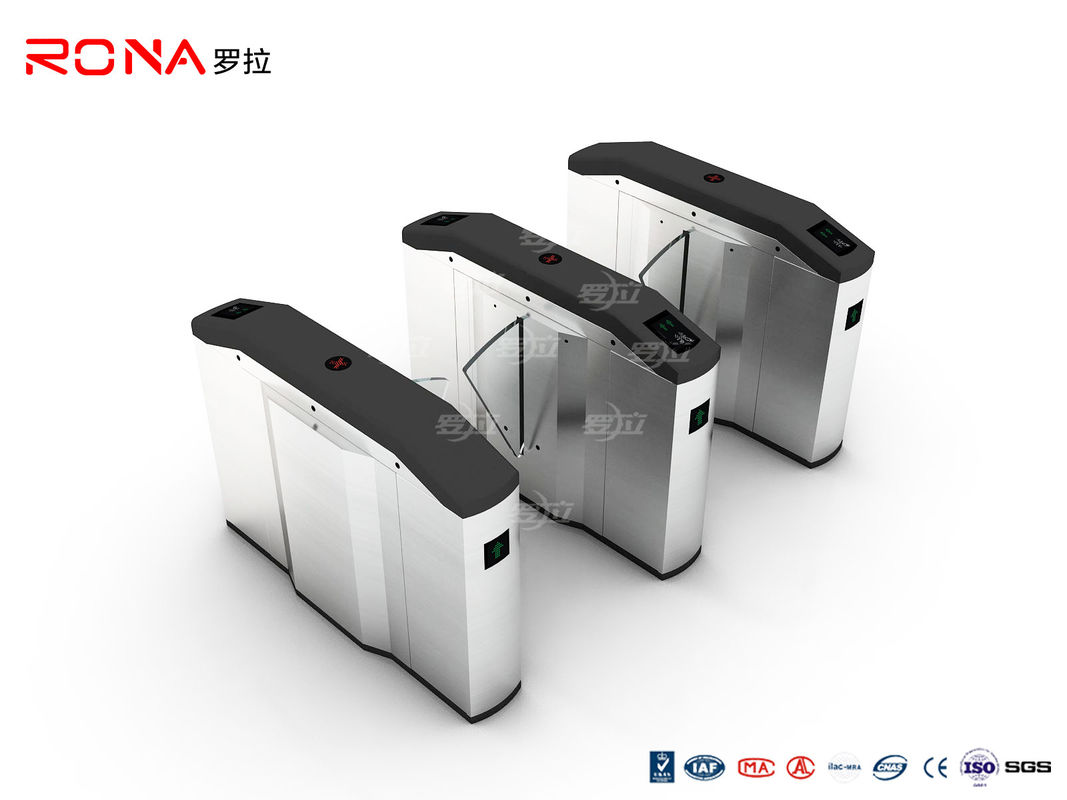

Display of effect drawing
