Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF 8088H

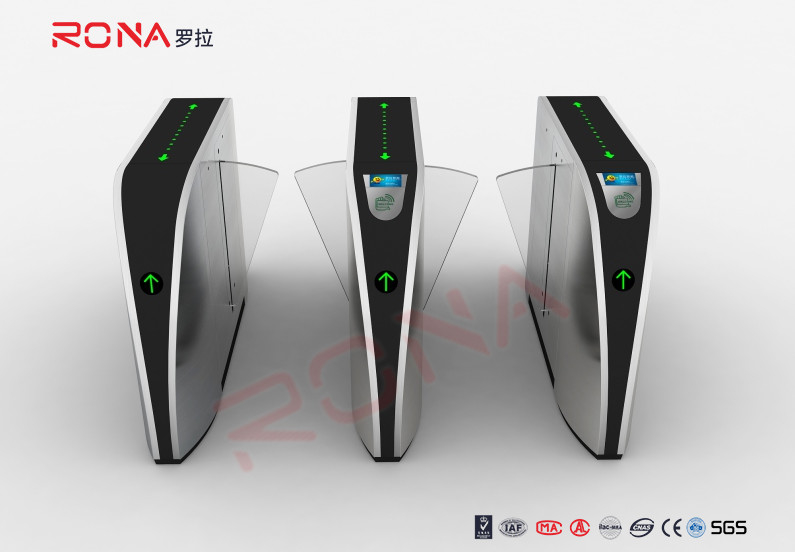

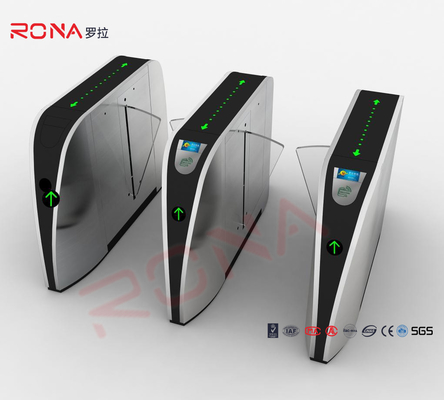

The flap barrier is a type of turnstile gate with a stylish appearance, fast traffic speed, and effective personnel verification.It is also referred to as a flap barrier gate or flap barrier turnstile and is commonly deployed in areas with high pedestrian traffic at entry and exit points. This type of turnstile boasts swift opening, ensuring safety and convenience, making it an optimal management and guidance device for high-frequency pedestrian access channels.
The flap turnstile is an ideal management and guidance device for pedestrians to enter and leave the passage with high frequency. It can be matched with face equipment, card reader, QR code, fingerprint, password recognition, QR code ticket checking recognition, and other recognition methods to achieve multiple authentication methods to meet the business requirements of personnel control, attendance, and so on. Various choices also make customers feel more at ease. For this section, you can refer to turnstile gate with card reader,QR code turnstile, and turnstile gate with face recognition.
Features&Functions
➭Alarm function & Zero self-inspection, convenient for customer to maintain and use.
➭Anti-pinch function: turnstile have Mechanical / infrared Anti-pinch functions (the arms are Soft rubber ).
➭Somebody enter the gate illegal or Tailgating will trigger alarm.
➭Before received the open signal, the turnstile will lock automatically.
➭Open the turnstile automatically after out of power, closed turnstile automatically after connect the power, totally meet the fire
protection needs.
➭The turnstile can work with door access control system/consumption system /biometric recognition system/ ESD system and
so on.
➭Single or bidirectional optional to control pedestrian enter and exit.
➭Can manager and long-range control the turnstile directly by managing the computer.
Parameters
| Size: | L1200*W300*H990 mm |
| Retractable arm length: | 250 mm |
| Max Passage width: | 550 mm |
| Material: | SUS 304 stainless steel |
| Working voltage: | AC220±10%V , 50HZ |
| Drive motor: | DC24V brushless motor |
| Input interface: | Dry contact signal & 12V level signal, drive current>10mA |
| Normal running life: | More than 8 million |
| Communication interface: | Standard RS232 interface |
| Sensor pairs : | 6 pairs |
| Pass speed: | 30 persons/min |
| Turnstile open / closed time: | 1 second |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
Application(Include but not limited)
