Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF KT3001

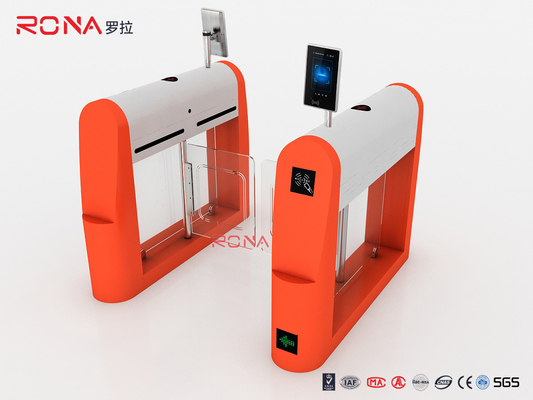

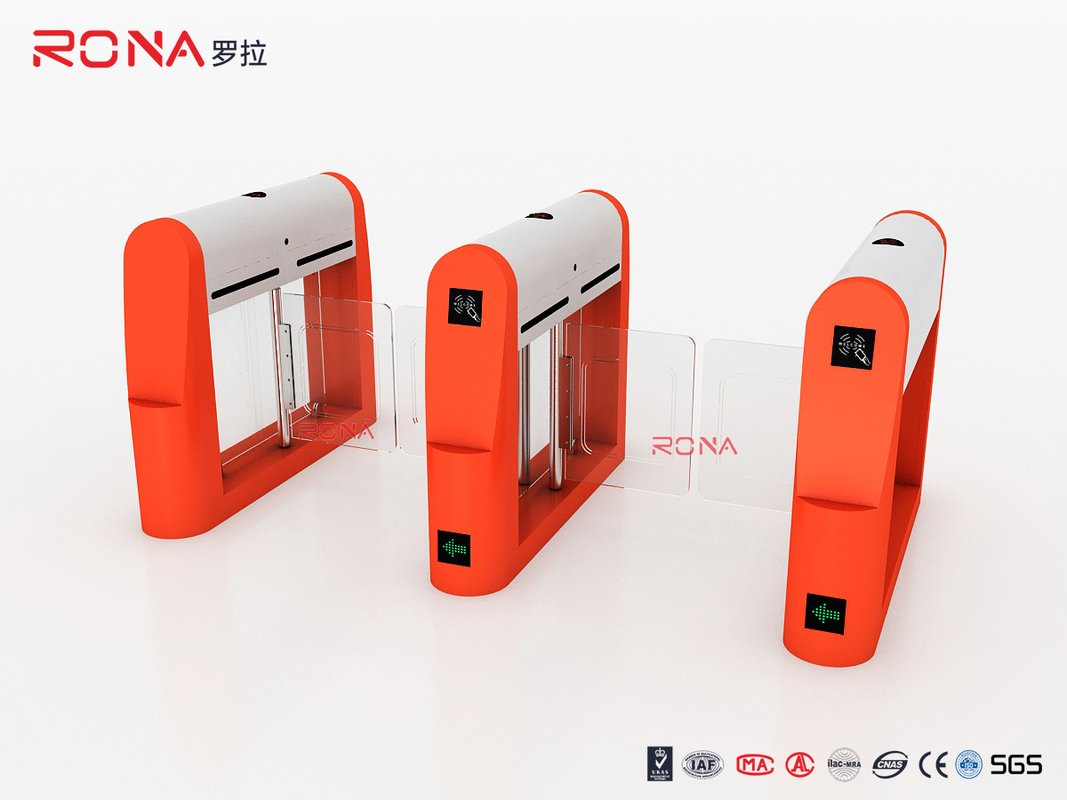

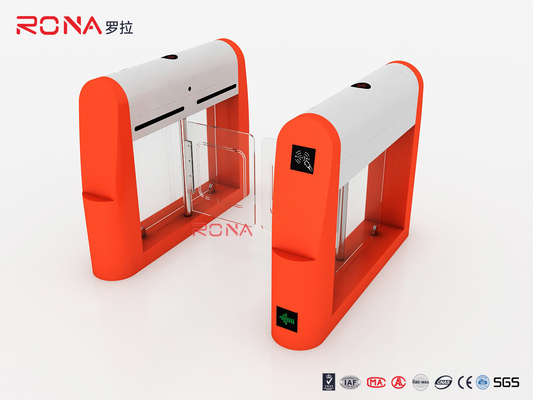

Swing turnstile gate is one of the most widely used pedestrian access control turnstile gates. It is a high-tech product mainly for intelligent management of personnel access control.The blocking body(swing arms) of the swing turnstile is a plane with a certain area, perpendicular to the ground, blocking and release is achieved by rotating and swinging. The materials of the blocking body are usually stainless steel, plexiglass, and toughened glass, and some also use metal plates wrapped with special flexible materials (to reduce the injury of hitting pedestrians).
The swing turnstile is mainly used for channel entrance and exit management, usually only allowing personnel to pass through, and can also allow personnel carrying luggage and disabled people to pass through. Compared to flap barriers, swing turnstiles can achieve a wider passage width, and most of the swing turnstile passages can be mixed with non motorized vehicles such as pedestrians, bicycles, mopeds, and disabled vehicles.
| Product type: | Swing gate turnstile |
| Product model: | RNCF KT 3001 |
| Motor type: | DC24V brushless motor |
| Main board type: | V2.6 |
| MTBF: | 8 million times |
| Sensor quantity: | 4 pairs |
| Pass speed: | 30 person/min |
| Passage width: | 500mm |
| Swing arm material: | Acrylic |
| Working environment: | Indoor/semi-outdoor |
| Input interface: | AC100-240V, 50/60HZ |
| Working voltage: | DC24V |
| Working power: |
60-100W |
| Working temperature: | -15℃～70℃ |
| Working humidity: | 5%-9% |
