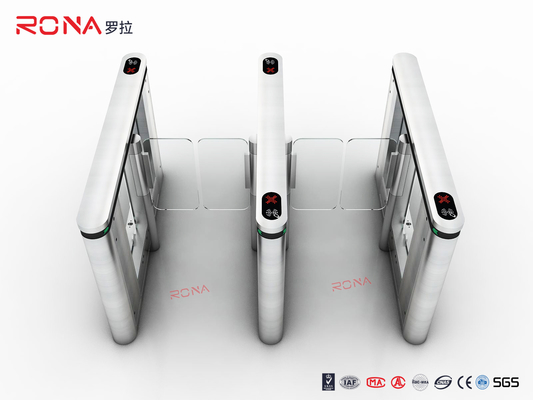

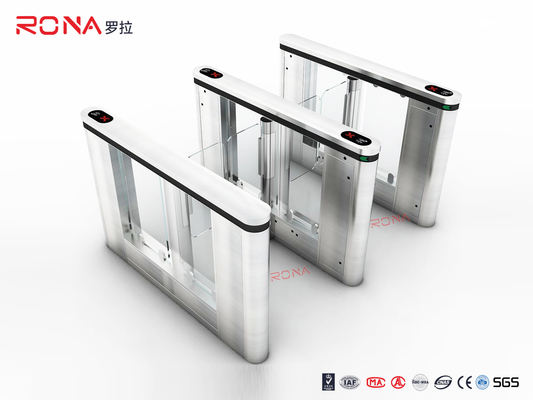

Turnstyle Door Access Control Turnstile Gate Speed Gate Turnstile For Ofiice Building

Turnstyle Door Turnstile Access Control System Luxury Speed Gate For Ofiice Building

Product Introduction

Speed turnstile gates are rotatable devices that allow the controlled passage of people, typically one person at a time, through a barrier to control access to specific areas and used to control noncritical areas (e.g., offices, swimming pools, sports facilities), which usually have rather compact dimensions.

The security turnstile speed gates are suitable for monitoring access to shops, subway stations, and other facilities of many kinds and access to working areas. The turnstile barriers allow people to walk through only after the user has obtained clearance from dedicated members, utilizing a magnetically, optically, or similarly readable personal badge. Once the clearance has been given, an electronic control unit provides temporary unlocking of the turnstile revolving member, which normally prevents passage in front of the turnstiles. In addition, the control unit is connected with sensors of various types, suitable for detecting turnstile unauthorized sidestepping or walking through attempts, to trigger suitable optical and/or acoustical alarm signals.

Features

1. Stylish, architectural design
2. Minimal footprint for maximum throughput
3. Wider variants suitable for wheelchairs and bicycles
4. Precision-controlled movement of obstacles and detection of all obstructions
5. Optional high barriers for maximum security requirements in monitored and unmonitored areas
6. When combined with a fire alarm system and a fire alarm, obstacles automatically open to free the passage.
7. Smooth integration of proximity, magnetic card readers, biometric scanners, and other user authentication systems.

Functions

1,Pass mode:

We have 9 pass mode can choose, control by bidirectional& directional,free pass； normal open,normal closed which can  meet difference requirements

2,memory function

This equipment can memory more than 2 pcs continuous legal signal (can memory less than 255 pcs legal signal)

3,Second time open function

if people stand on the sensor area and swiping the card,or people swiping the card but another people enter to        the sensor area in opposite side,Result: turnstile will not open, only after people out of the sensor area, the turnstile will open again, we called it second time open function.

4,Intelligent anti-pinch function
We have sensor anti-pinch design / motor torque anti-pinch design /mechanical anti-pinch design, those design to make sure passage’s safety when the pass.

5,Beep warning function
This turnstile will be beep to warn manager that illegal action being happened(illegal enter, opposite enter, overdue stop, fire alarm normal open, malfunction alarm …)

6,Automatic reset
After we swiping the card, during the specified time passenger Don’t pass, the turnstile system will cancel this permission and close the gate.

7, Logical monitoring
9-12 pair sensor (can enlarge to 24 pair sensor), turnstile system will monitor the passenger, kids, wheelchair, luggage’s position, and also can warm alarm when have trailing, break in, opposite enter illegal action happened

8,Anti-illegal collision
Before the turnstile received the enter signal, if the passenger break in the sensor area, turnstile will lock and alarm.

9,Friendly LED direction
Right now our turnstile have Red cross and Green arrow light. Red cross means, we can’t pass right now.Green arrow means, we can pass right now.

10,Touch screen parameter setting
This turnstile’s parameter can set by a touch screen device, it is more convenient.

11,self -checking
This turnstile has self-checking function, after the turnstile connect with the touch screen device by cable, we can see easily what the problem the turnstile has.

12,State feedback
This turnstile has kinds of the device’s state feedback can meet difference client’s requirements.

Parameters

Applications

Office buildings
Amusement parks
Data centers
Metro stations
Government facilities
Airports
Stadiums

Project cases
