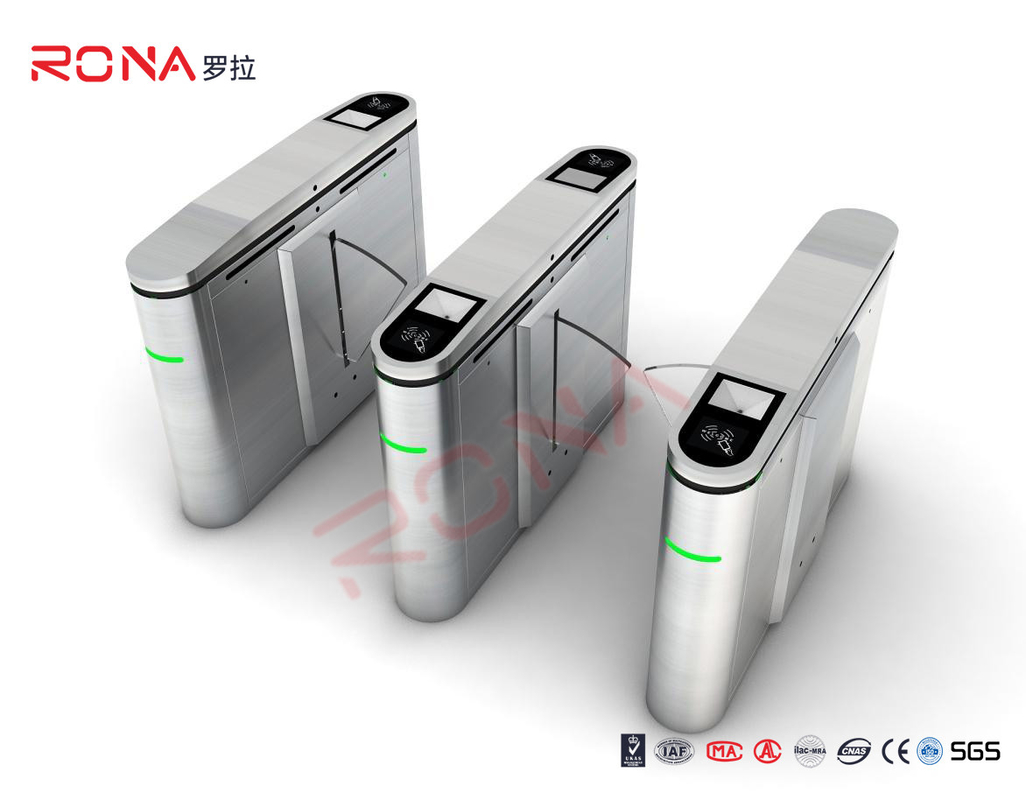

Heavy Duty Industrial Speed Flap Barrier Turnstile For Office Building

Heavy Duty Industrial Speed Flap Barrier Turnstile For Office Building

Heavy Duty Flap Barrier Gate

Speed Flap Barrier Turnstile

Flap Barrier Turnstile For Office Building

Place of Origin:

China

Brand Name:

RONA

Certification:

CE/ISO9001

Model Number:

RNCF 7088P

Contact Us
Request A Quote
Product Details
Housing Material:
304 Stailess Steel
Working Voltage:
AC100-220V,50/60HZ
Driving Motor:
DC24V Brushless Motor
Dimension:
1500MM*300MM*990MM
Passage Width:
550mm
Direction:
Single/bi-direction
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 work days
Payment Terms
L/C, T/T
Supply Ability
2000 unit per month
Product Description

Heavy Duty Industrial Speed Flap Barrier Turnstile For Office Building





Product Introduction:


As the upgraded version of the tripod turnstile and swing barrier, flap barrier gate is a hi-tech product for pedestrian access control. Flap barrier has features of precise craftsmanship, comprehensive functions, and high technology. It has applications in high-class communities, intelligent buildings, hotels, subway stations, and other high-level venues.

Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicators to realize the intelligent management of access control is to comply with the fire safety requirements.

Flap barrier motor can be classified into the single motor and double motors. The single one is used for a single lane and the double one is used for multi-lanes.



Functions:



1,Anti-pinch function:Can lead children, drag luggage, backpack, wheelchair access

2,Anti-collision function:the telescopic arm automatically locks unless recive the opening signal

3,Prevention of illegal intrusion function

4,Alarm function & Zero self-inspection, it is convenient for customer to maintain and use.

5,Turnstile can set the working condition by press the button of main control board.

6,Single or bidirectional optional to control pedestrian enter and exit.

7,Can manager and long-range control the turnstile directly by managing the computer.





Specifications:


Model: RNCF 7088P
Cabinet dimension 1500mm(L)×300mm(W)×990mm(H)
Stretching-out flap length 280mm
The max lane width 660mm
Cabinet material 304 stainless steel
Power supply AC220V±15%, AC110V±15%
Motor voltage DC24V (servo motor)
Access device input voltage dry contact or 12V electrical level signal or >100ms 12V impulse signal or driving current >10mA
Max flow rate 30~40 people per minute
Flap opening/closing time 1 sec
reset time when power on 3 sec
protection grade IP32
working environment outdoors (with shelter) and indoors.
working temperature -15°C~70°C





Access control system
