Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF 5008HD
Product Introduction

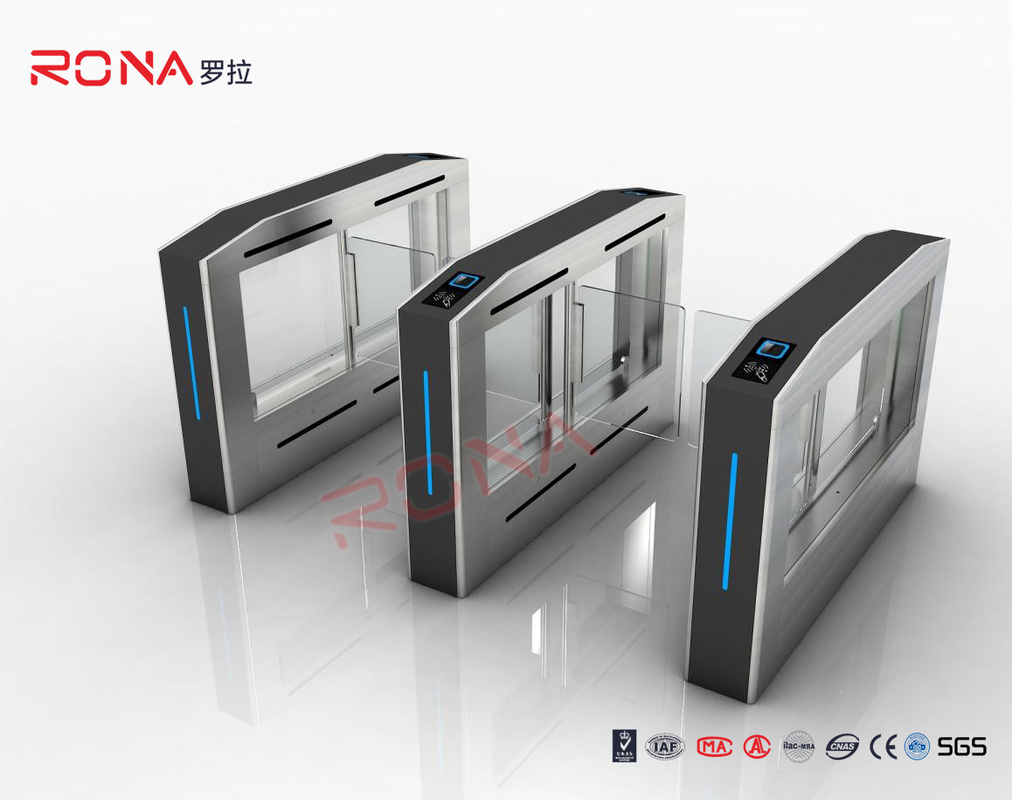

As a high-performance swing barrier turnstile gate, the swing turnstile gate can be used in many places by virtue of its many advantages. In-office buildings, libraries, airports, etc, which can effectively protect security to access control.
Swing barrier turnstile is easily capable of handling high volume and abusive conditions. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry out intelligent management on passage.
Functions&Features
Parameters
| Size: | L1500*W220*H990 mm |
| Motor type: | Servo motor |
| Main board type: | V2.621 |
| Normal running life: | ≧5 million times |
| Sensor quantity: | 9 pairs |
| Pass speed: | 30 person/min |
| Housing material: | 304 stainless steel&Stoving varnish |
| Passage width: | 500-1100MM |
| Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
| Input interface: | AC100-240V,50/60HZ |
| Working voltage: | DC24V |
| Working power: | 100W |
| Working temperature: | -15℃-70℃ |
| Working humidity: | 5%-90% |
| Working environment: | Indoor/Semi-outdoor(with shade) |
| Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
Dimenson
