Place of Origin:
China
Brand Name:
RONA
Certification:
CE/ISO9001
Model Number:
RNCF 1066
Description:

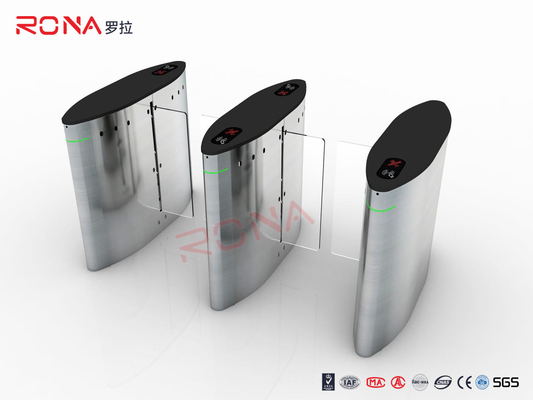

Sliding turnstile is a kind of swing barrier turnstiles that are compact and designed for smooth & silent operation with very little power draw. The acrylic barriers are normally held in a locked position. Users can be granted access through the turnstile with your choice of access control method.
such as RFID, fingerprint, QR code scanner, face reader and more.
Features:
Parameters
| Size: | L1210*W310*H1020 mm |
| Motor type: | Servo motor |
| Main board type: | V3.1 |
| Normal running life: | 5 million times |
| Sensor quantity: | 9 pairs |
| Pass speed: | 30 person/min |
| Housing material: | 304 stainless steel&Stoving varnish |
| Passage width: | 550MM |
| Swing arm material: | Acrylic/Tempered glass/Stainless steel pipe(optional) |
| Input interface: | AC100-240V,50/60HZ |
| Working voltage: | DC24V |
| Working power: | 100W |
| Working temperature: | -15℃-70℃ |
| Working humidity: | 5%-90% |
| Working environment: | Indoor/Semi-outdoor(with shade) |
| Input interface: | Relay dry contact signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA |
