Stainless Steel Access Control Turnstile Gate DC Servo Motor With RFID Card Reader

Stainless Steel Access Control Turnstile Gate DC Servo Motor With RFID Card Reader

fastlane turnstiles

speedgate turnstile

bus station pedestrian speed gates

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF H8008-10

Contact Us
Request A Quote
Product Details
Product Name:
Luxury Speed Gate Bus Station Stainless Steel Automatic Speed Gate With RFID Card Reader
Standard Size:
1600*160*1060mm
Driving Motor:
DC Servo Motor
Material Swing:
Acrylic Or Tempered Glass
Pass Speed:
35-40 Persons/min
Environment:
Indoor
Working Life:
10 Millions
Warrenty:
12 Month
Payment & Shipping Terms
Minimum Order Quantity
1 pair
Price
negotiation
Packaging Details
Wooden Case Packing
Delivery Time
7-15 working days
Payment Terms
, T/T
Supply Ability
2000 units Per Month
Product Description

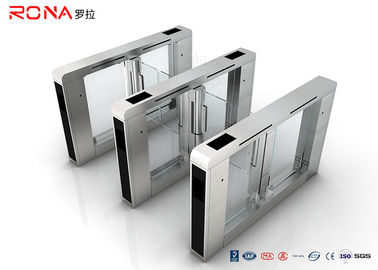

Stainless Steel Access Control Turnstile Gate DC Servo Motor With RFID Card Reader 0


Luxury Speed Gate Bus Station Stainless Steel Automatic Speed Gate With RFID Card Reader



PRODUCT DESCRIPTIONS:



The speed gate turnstile is with high-quality serve motor is configured and advanced servo control system is carried to truly achieve precise control, stable performance with no maintenance.

Lossless mechanism structure is based on German technology adopted to ensure long lifespan.



The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the behaviors that threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating, and give out alarms through sound, light, etc. The turnstile can be combine with other security systems.



SPECIFICATIONS:

Framework 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional)
Thickness of ply 2.0mm
Finish brushed surface, polishing surface
Shell's size
Swing arm material Tempered glass or Acrylic
Stretching out swing length 260mm~550mm
The inductive card reader dimension equipped with the standard mounting brackets or tailor.
Machine center Germany technological motor
Power voltage AC220V±10%, 50Hz±10%
Driver motor DC36 servo motor
Main-board voltage 12V DC
In-built Infrared 6 pairs/passageway
Passing speed in normally 40 persons/min
Passing speed in normally closed mode 35 persons/min
Passage Width 600mm ~1150mm
Swing arm transmission angle 180°
Swinging direction unidirectional or bi-directional
Opening / closing time 0.1 seconds
The time required to running state after power on 3 seconds
Automatic reset time after the failure 1 seconds
Mean time to failure min. 10 000 000
Operation temperature -10℃ ~ +70℃
Relative humidity less than 95% not condensed
Working Environment Indoor/Outdoor (with rain-tent cover)
Input port relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal
Communications port

RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet







Features



1. The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
2. Infrared and mechanical anti-clamping functions provide double protection.
3. The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.
4. All electric modules are designed to operate under the safety voltage of 24V, and are configured with residual current protective devices to effectively avoid electric shocks.
5. RFID access controller, fingerprint reader, facial identify reader, qr code reader, barcode reader, consume system optional.





APPLICATIONS:



Typical areas of application are: Employee and Visitor Access Control, Time & Attendance Integration, Loss Prevention, Government Facilities, Buildings, Banks, Museums and Airports, etc high-end places.

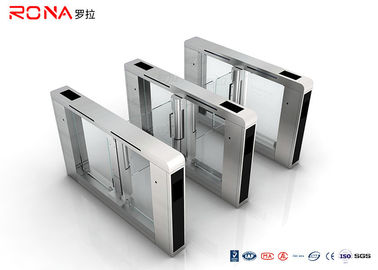

Stainless Steel Access Control Turnstile Gate DC Servo Motor With RFID Card Reader 1

In Club

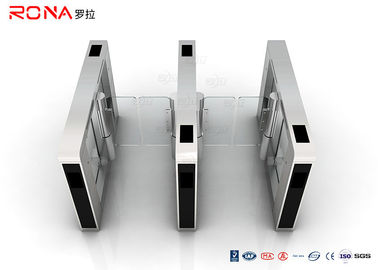

Stainless Steel Access Control Turnstile Gate DC Servo Motor With RFID Card Reader 2



Exhibition

Stainless Steel Access Control Turnstile Gate DC Servo Motor With RFID Card Reader 3
