Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF H8008-10

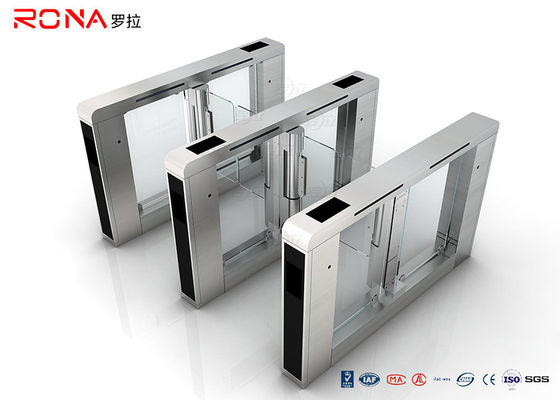

Introduce of speed gates :
The speed gate turnstile is with high-quality and speed servo motor is configured and advanced servo control system is carried to truly achieve precise control, stable performance with no maintenance.Lossless mechanism structure is based on German technology adopted to ensure long lifespan.
The matrix type photoelectric stereoscopic detection technology is adopted to sensitively detect the behaviors that threaten the passageway safety, such as illegal intrusion, reverse passing, tail-gating, and give out alarms through sound, light, etc. The turnstile can be combine with other security systems.
Functions and Features of the sliding gates :
RFID access controller, fingerprint reader, facial identify reader, QR code reader, barcode reader, consume system optional.
Specification:
| Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
| Swing arm material | Tempered glass or Acrylic |
| Stretching out swing length | 260mm~550mm |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. |
| Machine center | Germany technological motor |
| Power voltage | AC220V±10%, 50Hz±10% |
| Driver motor | servo motor |
| In-built Infrared | 6 pairs/passageway |
| Passing speed in normally | 40 persons/min(normal open);35 persons/min(normal closed) |
| Passage Width | 600mm ~1150mm |
| Swinging direction | unidirectional or bi-directional |
| Opening / closing time | 0.1 seconds |
| Automatic reset time after the failure | 1 seconds |
| Mean time to failure | 10millon |
| Operation temperature | -10℃ ~ +70℃ |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Communications port | RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
