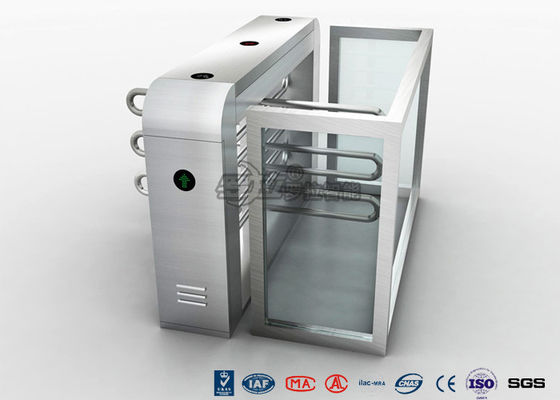

Double Anti - Clipping Waist Height Turnstiles AC220V With Stepping Driver Motor

    • Double Anti - Clipping Waist Height Turnstiles AC220V With Stepping Driver Motor
    • Double Anti - Clipping Waist Height Turnstiles AC220V With Stepping Driver Motor
  • Double Anti - Clipping Waist Height Turnstiles AC220V With Stepping Driver Motor

    Product Details:

    Place of Origin: China
    Brand Name: RONA
    Certification: CE / ISO9001
    Model Number: RNCF H10238-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Lane
    Price: negotiation
    Packaging Details: carton and wooden packing
    Delivery Time: 7-15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 2000 units Per Month
    Contact Now
    Detailed Product Description
    Finish: Brushed Surface/polishing Surface Dimension: 1400mm*280mm*990mm
    Power Voltage: AC220V±10%, 50Hz±10% Driver Motor: Stepping Motor
    Passing Speed: 30 Persons/min Passage Width: 600mm~900mm
    Communication Interface: RS 485, Distance ≤1200m Access Control:: RFID,fingerprint,barcode,esd,token

    Pedestrian Waist Height Turnstiles With Stepping Driver Motor,Access Control System For Shopping Mall





    Introduce of sliding turnstile gates :

    half height waist height tripod turnstiles $moel$ is mainly installed in entrance and exit of shopping mall which has a large flow rate; it is most popular in supermarket.
    half height waist height tripod turnstiles $moel$ is designed to work in a normally closed mode and retract inside the pedestal, normally free exit by sensors, and entrance forbidden.
    half height waist height tripod turnstiles $moel$ ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



    Functions and Features of the sliding gates :

    1. Problem-self-checking function.

    2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.

    3. When power off, arm open automatically and power on again, arm will be held automatically.

    4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.

    5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

    6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.

    7. Flap barrier is with 485 interface for long-distrance control concern.

    8. Anti-rush function: if there is no open single, arm will be holding tightly.

    9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.

    10. Flap barrier is with standard electrical interface for the integration of various readers and writers.

    11. Flap barrier can count how many passenger has passed and will show it in the LED display.

    12. Direction display to guide passenger which direction is to go.

    13. Card-reading with memory or without memory function.

    14. Flap barrier can control the population inside in the control of software.

    15. Stable running with little noise.



    SPECIFICATIONS:



    Framework Material 304 Stainless Steel
    Dimension 1400 * 280 * 990mm
    Net Weight 150kg
    Passage Width 550mm
    Passing Direction Single directional / Bi-directional
    Power Supply AC220V/110V, 50/60Hz
    Operation Voltage 24V DC
    Power Consumption 40W
    Operation Temperature -15 °C – 60 °C
    Operation Humidity 0 ~ 95% (No freeze)
    Working Environment Indoor / Outdoor (Shelter)
    Flow Rate 35-40 people per minute
    LED Indicator Yes
    Input Dry contact
    Emergency Automatic arm open when power off
    Communication RS485, TCP/IP



    Double Anti - Clipping Waist Height Turnstiles AC220V With Stepping Driver Motor

    Double Anti - Clipping Waist Height Turnstiles AC220V With Stepping Driver Motor
