Place of Origin:
China
Brand Name:
RONA
Certification:
CE / ISO9001
Model Number:
RNCF8008Z-2

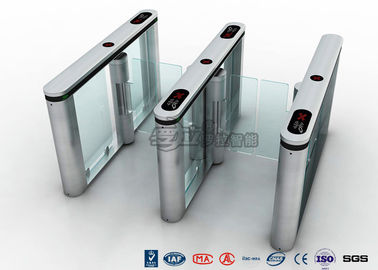

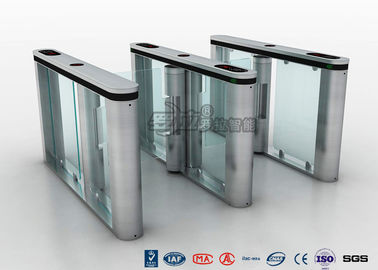

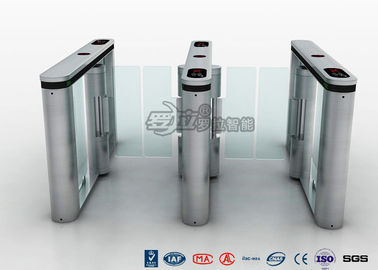

Fingerprint Pedestrian Swing Gate RFID Card Reader Anti - Pinch Mechanical Structure
Introduce of swing barrier gates
Swing barrier is an ideal passenger access management device produced by our company after years research and development. Our standard product, made of 304 stainless steel, integrating with mechanism, electron, microprocessor and various identification technology, is able to achieve access intelligent control and management by configuring all kinds of identification devices. Direction indicator and well-extended LED counting display.
Bridge swing turnstile is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to prvoide intelligent control and management to flow control. This turnstile series is made of 304 stainless steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit. It can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.
Features and Benefits
1. Fault self-test and alarm functions,convenient user maintenance and using
2. Via the control board Built in a small dish,Programmable devices running status
3. Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance,
within a limited time automatically stops the motor, the default delay after the reset again (until reset), and
the force is very small (≤2Kg )
4. Break into protection function, when the gate signal is not received, the arm automatically locked
5. Relative with a variety of reader device attached,working when receive relay switch signal
6. Remote control and management by the management computer
7. Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements
8. Pinch function (bridge type four pairs of infrared optional
Basic information of swing barrier gates
| Housing material | 304 grade stainless steel(thickness 1.5mm) |
| Length of arm | 600mm(standard)/500-900mm(option) |
| Arm's rotation angle | 180 degree |
| Swing direction | single or bi-direction |
| Driving electromotor | DC Brush electromotor 50W/24V |
| Normal useful life | 5 million times |
| Working voltage | AC220V±10%V/50±10%Hz,AC110V±10%/50Hz±10% |
| Temperature | -10C - 50C |
| Working environment | Indoor ,outdoor(with a tent over) |
| Transit speed | 40 persons/min(open often) 25-30 person/min(close often) |
| Open/close time | 2~3s |
| Starting time after power on | 3s |
| Automatic reset time after fault | 10s |
| Communication interface | RS485 standard distance less than 1200 meters |
| Input interface | Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current > 10mA |
| Relative humidity | <= 90% no condensation |
