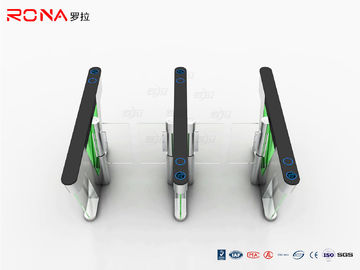

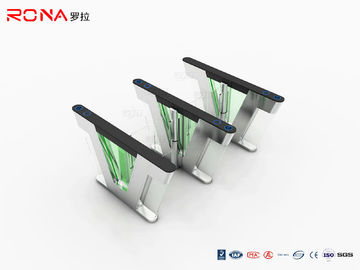

Organic Glass Access Control Barriers Swing Gate AC220V With Multi Passing Modes

Organic Glass Access Control Barriers Swing Gate AC220V With Multi Passing Modes

fastlane turnstiles

access control barriers

Place of Origin:

China

Brand Name:

RONA

Certification:

CE / ISO9001

Model Number:

RNCF H8008-16

Contact Us
Request A Quote
Product Details
Product Name:
Organic Glass Speed Gate Turnstile Swing Gate Barrier With Multi Passing Modes
Materials:
304# Stainless Steel/Stoving Varnish
Passing Speed:
35~40 Persons/min
Size:
L1600*W160*H1060mm
Nomal Running Life:
10 Million
Communication Interface:
RS485
Payment & Shipping Terms
Minimum Order Quantity
1 Lane
Price
negotiation
Packaging Details
carton and wooden packing
Delivery Time
7-15 working days
Payment Terms
T/T,
Supply Ability
2000 units Per Month
Product Description

Organic Glass Speed Gate Turnstile Swing Gate Barrier With Multi Passing Modes



Product Features:
Swing gate turnstile is designed in a modern and elegant style and provide an ideal contactless solution for access control at sites

Speedlane turnstile housing is made of 304 grade stainless steel. The swing panels and the filling glass are made of organic glass.
The motorized swing flap gate maximizes throughput and provides superior passage comfort for guests.

Swinging speedgate is equipped with the dry contact signal input interface, RS485/RS232 interface, TCP/IP interface (optional), compatible with all kinds of access controllers.
Speedgate turnstile is with the direction display, to guide passenger which direction is to go.

Audio indication can be connected to access control speed gate in order to alert the operator on the attempted unauthorized passing.







Passing Modes:

The entry and exit of swing gate turnstile can be set independently【controlled mode】 /【 free mode 】/【 forbidden mode】
● Controlled mode: it is the default standby mode of security swing gate. When a valid opening signal is given, swing turnstiles gate opens to allow users to pass through.
● Free passing mode: When a valid open signal is given, speedlane turnstile opens and users can pass through freely.
● Forbidden passing mode: When a valid open signal is given, glass speed gate closes and users are not allowed to pass through.



Product Parameters:

Communication interface RS485/RS232 interface, TCP/IP interface (optional)
Dimension L1600*W160*H990mm
Swing arm length 230mm~500mm
Power supply AC220V
Driving motor DC brushless motor
Direction Single or Bi-directional
IR Sensors 9Pairs (default); More pairs can be customized
