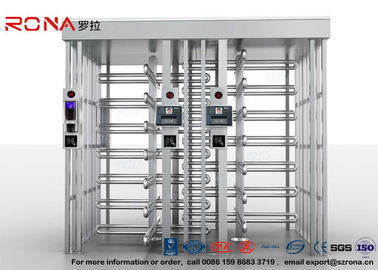

304 Stainless Steel Turnstile Full Height Brushed Surface Treatment With Double Lane

304 Stainless Steel Turnstile Full Height Brushed Surface Treatment With Double Lane

Product Details:

Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF21238FS-2U

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Strong seaworthy wooden cases packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Material:: 304# Stainless Steel Dimensions:: L2600mm*W1350mm*H2200mm
Transit Speed:: 30 Persons/minute MTBF:: 5 Million
Communication:: RS485, TCP/IP Package:: Wooden Case
Working Environment: Indoor Or Outdoor

Hot Sale Full Height Turnstile with Double Lane 304 Stainless Steel Turnstiles


Model: RNCF21238FS-2U Double Lane Full Height Turnstile

Product Description:

Full height turnstile is designed to control pedestrian entering and exiting, adopts stainless steel #304, double brushed surface treatment, dust-proof, rustproof, rainproof design, suitable for indoor and outdoor use, easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.




Standard Features&Functions:

1.

The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader,consumption system, ESD system and access control system etc, Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID/IC card etc.

2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch- button or access controller
3.

Available with 4-arm, 90 degree spacing (default) or 3-arm, 120 degree spacing (optional).

4.

Anti backup function: to prevent reverse rotation once the mechanism has move 60 degree from home.

5. The running status of device can be set up through pressing the built-in small keyboard of the main control board.
6.

When power off, the center rotor will be set free model (default) or be locked model (optional).

7.

Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote-controlled whether the power is on or not.

8.

Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable by changing parameter of main control board).

9.

Remote control and management function: Through the management computer to realize remote control and management.





TECHNICAL SPECIFICATIONS:

Framework: 304# Stainless Steel (default), 201# or 316# Stainless Steel (optional)
Thickness of ply: 1.7mm
Finish: Brushed surface / Polished surface / Anti-Fingerprints surface
Shell’ size: L1500mm*W1350mm*H2200mm (Standard)
Arm’s length: 600mm
Arm diameter: 38mm
The inductive card reader dimension: equipped with the standard mounting brackets, or tailor.
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
Operation voltage: AC220V±10% 50Hz±10%
Time of opening / closing: 0.2s
Time to work after power on: 3s
Reset time after breaking down: 10s
Transit speed: 30 persons/minute
MTBF: >5 million
Communications Interface: RS485, distance ≤1200m (standard) ; Available to connect with external CAN BUS and Ethernet (Optional)
Input interface: relay dry contact signal; +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Relative humidity: ≤90% Non-condensing
Working Environment: -10℃ ~ 70℃, Indoor / Outdoor
Certificates: CE certified






Operation Models:

The turnstile provides bi-directional access control. Each direction may be in one of three states:
Free passage: all person are authorized to pass under all conditions

Controlled access: each person must use a card reader before being authorized to pass.

Lane closed: no persons are authorized to pass, and security cards are ignored.







304 Stainless Steel Turnstile Full Height Brushed Surface Treatment With Double Lane

304 Stainless Steel Turnstile Full Height Brushed Surface Treatment With Double Lane
