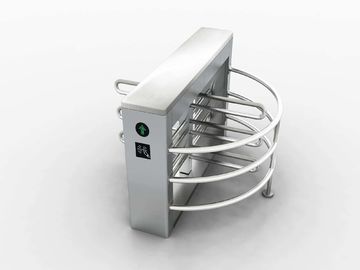

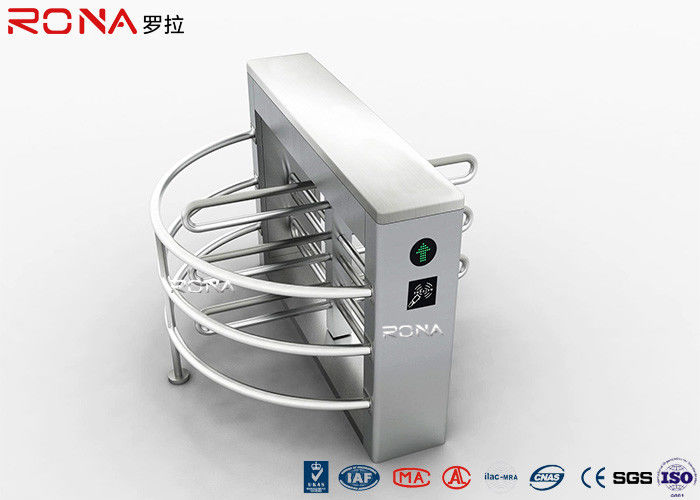

DC 24V Brush Motor Half Height Turnstiles Car Reader / RIFD Access Control

    • DC 24V Brush Motor Half Height Turnstiles Car Reader / RIFD Access Control
    • DC 24V Brush Motor Half Height Turnstiles Car Reader / RIFD Access Control
  • DC 24V Brush Motor Half Height Turnstiles Car Reader / RIFD Access Control

    Product Details:

    Place of Origin: China
    Brand Name: RONA
    Certification: CE / ISO9001
    Model Number: RNCF10238-4U

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiation
    Packaging Details: Export Wooden Packing
    Delivery Time: 7-15 working days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 2000 units Per Month
    Contact Now
    Detailed Product Description
    Material: 304 Stainless Steel Arm Length: 510mm
    Size: L1400*W280*H1000mm Drive Motor: DC 24V Brush Motor
    Normal Work Life: > 5 Millions Communication Interface: RS485(optional)
    Arm Drving Force: 1kg Product Name: DC 24V Brush Motor Half Height Turnstiles Car Reader / RIFD Access Control



    DC 24V Brush Motor Half Height Turnstiles Car Reader / RIFD Access Control



    Product Description Of The Waist Height Turnstile





    The half height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.




    Technical Parameters



    Item RNCF10238-4U
    Material 304 Stainless Steel
    Specification 1200*280*1000mm
    Drive motor DC 24V brush motor
    Length of the arm 510mm
    Pass direction one or bi-directional
    Work environment Indoor or Outdoor
    Work temperature -10°C~70°C
    Relative humidity ≤90%, no condensation
    Time of opening/closing 0.2S
    Transit speed 40 People/minute normal open , 25-30 people/minute normal close
    Reset time after break down 10s
    Normal work life 3000000 times
    Communication interface RS485
    Input interface 12V pulse signal with pulse width >100ms, drive current >10mA







    Features & Function





    1.

     Direction indicator


    2.

    Direction can be set as single-direction or bi-direction


    3.

    CNC stamping and laser drilling, presenting a novel and elegant appearance


    4.

    Rainproof housing, anti-corrosion coating iron or #304 stainless steel


    5.

     Dual-bearing device, keeping the gate in balance when there is external force.


    6.

     Innovative and unique mounting surface ensures simple and convenient installation for system integrator;


    7.

    Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)


    8.

    The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.


    9.

    Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.









    DC 24V Brush Motor Half Height Turnstiles Car Reader / RIFD Access Control
