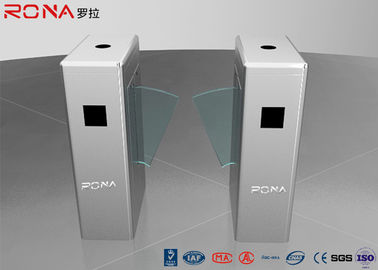

Automatic Flap Barrier Gate Security Access Control Turnstile Machine DC24V

Automatic Flap Barrier Gate Security Access Control Turnstile Machine DC24V

Automatic Flap Barrier Gate Security Access Control Turnstile Machine DC24V

Product Details:

Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF4088

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: carton and wooden packing
Delivery Time: 7-15 working days
Payment Terms: T/T, Western Union
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Product Name: Automatic Security Access Control Flap Turnstile Machine Size: L1400*W300*H900mm
Material Of Flap: Acrylic Passage Width: 550mm
Mean Time To Failure: ≧ 5 Million Communications Port:: RS485,distance=1200m
Materials: 304 Stainless Steel & Stoving Varnish Direction: Single And Bi-directional
Pass Speed: 40 Persons/min Tine To Opean And Close Gate: 0.6 Seconds



Automatic Security Access Control Flap Turnstile Machine



Tenical Parameters


Description Parameters
Item / Model RNCF4088
Running life No more than 5 millions
Drive voltage DC24V 20W
Pass Speed 40 persons/minute
Open direction Unidirectional and bidirectional (optional)
Opening time 0.6S/It is adjustable
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Input port relay dry contact signal; +12V level signal and pulse width >100ms, DC12V pulse signal
Working Environment indoor/out(with tent over)-10°C~70°C



Product Description


Flap turnstiles is a hight-tech product which mainly provides intelligent management to passageway.This product is finely processed with

complete function and high level ,suitable for high-level neighborhoods intelligent building, hotel, subway, port and club,ect.



Standard functions & features of Flap Turnstiles Gate


1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

2) DC Brushless Motor, Maintenance Free

3) On-line or off –line mode(optional)

4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation

5) With direction indication, guiding passenger to entry and exit.

6) Self automatic locking to prevent forcedly passing without the card

7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000

8) Light and sound alarm indication function, preventing illegal entry or irregular passing




Extend Functions


The flap turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities.

1. access control system
2. bar-code scanner
3. Token /ID/IC card reader
4. time & attendance system
5. coin collector
6. card collector
7. consumption system
8. ESD system and fare collection system
9. biometric systems (fingerprint & face recognition)
