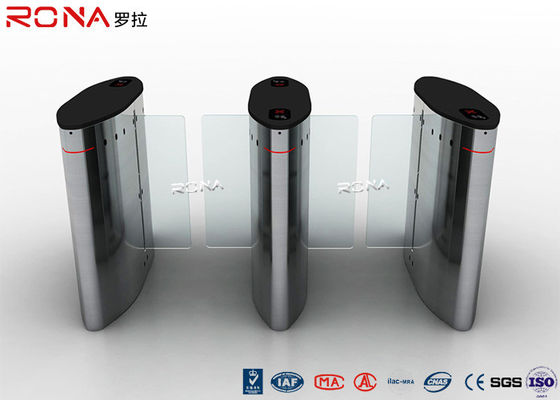

Hidden Waist Height Turnstile , Slide Pedestrian Barrier Gate 30 Persons / Min Transit Speed

Hidden Waist Height Turnstile , Slide Pedestrian Barrier Gate 30 Persons / Min Transit Speed

  • Hidden Waist Height Turnstile , Slide Pedestrian Barrier Gate 30 Persons / Min Transit Speed
Hidden Waist Height Turnstile , Slide Pedestrian Barrier Gate 30 Persons / Min Transit Speed
Product Details:
Place of Origin: China
Brand Name: RONA
Certification: CE / ISO9001
Model Number: RNCF1066
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 7-15 work days
Payment Terms: T/T, L/C,
Supply Ability: 2000 units Per Month
Contact Now
Detailed Product Description
Place Of Origin: Guangdong, China (Mainland) Size: L1400*W(250-300)*H1000MM
Type: Glass Sliding Turnstile Framework: 304 Grade Stainless Steel
Swing Arm Material: Acrylic / Tempered Glass Transit Speed: 30 Persons/min
Color: Customized
High Light:

automatic systems turnstiles

,

waist high turnstile



New Designed Hidden Waist Height Gate Slide Turnstile For Pedestrian



Description Parameters
Item / Model RNCF 1066
Power voltage AC220±10%,50Hz
Drive voltage DC24V 20W
Pass Speed not more than 30 persons/minutes
Open direction Unidirectional and bidirectional (optional)
Opening time 1S/adjustable
Humidity ≤90% coagulation free
Thickness of Housing 2.0mm
Length of the bar 230~900mm
Working Environment indoor/out(with tent over)-10°C~70°C





Product Description



1. Illegal Alarm Function Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage
2. Anti-pinch function Barriers auto open when power shut, insure user safety
3. Housing Turned up-coverage is water-proof and easy maintain
4. Emergency-escape function The obstacles will open automatically by pressing the emergency button which can be remote-controlled whether the power is on or not
5.Standard input/output port Meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC
6. Direction Big direction arrow plate to show passage condition





Standard functions & features of Sliding Turnstiles Gate



1. Kinds Of Mode Alarm Function, Including Illegal Intrusion, Anti Intrusion, Trailing, Traffic Alarm, Etc.
2.Anti Impact Function, In The Absence Of The Received Gate Signal, Automatically Block Arm Lock Or Alarm
3. Normally Open, Normally Closed Mode Can Be Adjusted, Easily Through The Dial Code Or External Manual Button Control

4. Flexible Access Indication Function, High Brightness Indicator Light And The Human Nature Of The Prompt Function, Let The Channel More Features

5..Mechanical, Infrared Double Anti Pinch Function, In Arms Reduction Process Blocked In The Block, Automatic Stop Or Rebound, And Send Out Alarm Signals

6. Reverse Break Into The Alarm Function, When The Positive Credit Card, Someone To Break Into The First, Then The Gear Quickly Closed And Issued A Warning


Extended functions



1. Add more infrared
2. LED counting function
3. Voice prompt function
4. Barrier color can choose
5. Secondly opening function to meet ticket system and anti-passback function






Hidden Waist Height Turnstile , Slide Pedestrian Barrier Gate 30 Persons / Min Transit Speed 0

Hidden Waist Height Turnstile , Slide Pedestrian Barrier Gate 30 Persons / Min Transit Speed 1
